Recovering Data from Damaged Android Phones: A Complete Guide to JTAG, ISP & Chip-Off Forensics

Mobile devices are an integral part of both personal life and criminal investigations. But what happens when an Android device becomes unreadable, nonfunctional, or physically damaged beyond standard repair?

At Data Engineers, we specialize in advanced mobile forensics—specifically in data extraction from severely damaged Android phones and tablets. Our expertise lies in non-standard, hardware-level techniques such as JTAG, In-System Programming (ISP), and Chip-Off analysis.

We serve a critical role by supporting:

🧪 Forensic Science Laboratories (FSLs)
👮 Law Enforcement Agencies (LEAs)
🏛️ Government Cybercrime Units
🕵️‍♂️ Legal Investigators & Intelligence Bodies

In addition to recovery services, we offer:

🎓 Certified Training Programs
🛠️ Specialized Forensic Tools & Hardware
🔄 Annual Maintenance Contracts (AMCs)
🧠 Technical Consulting for Government Agencies

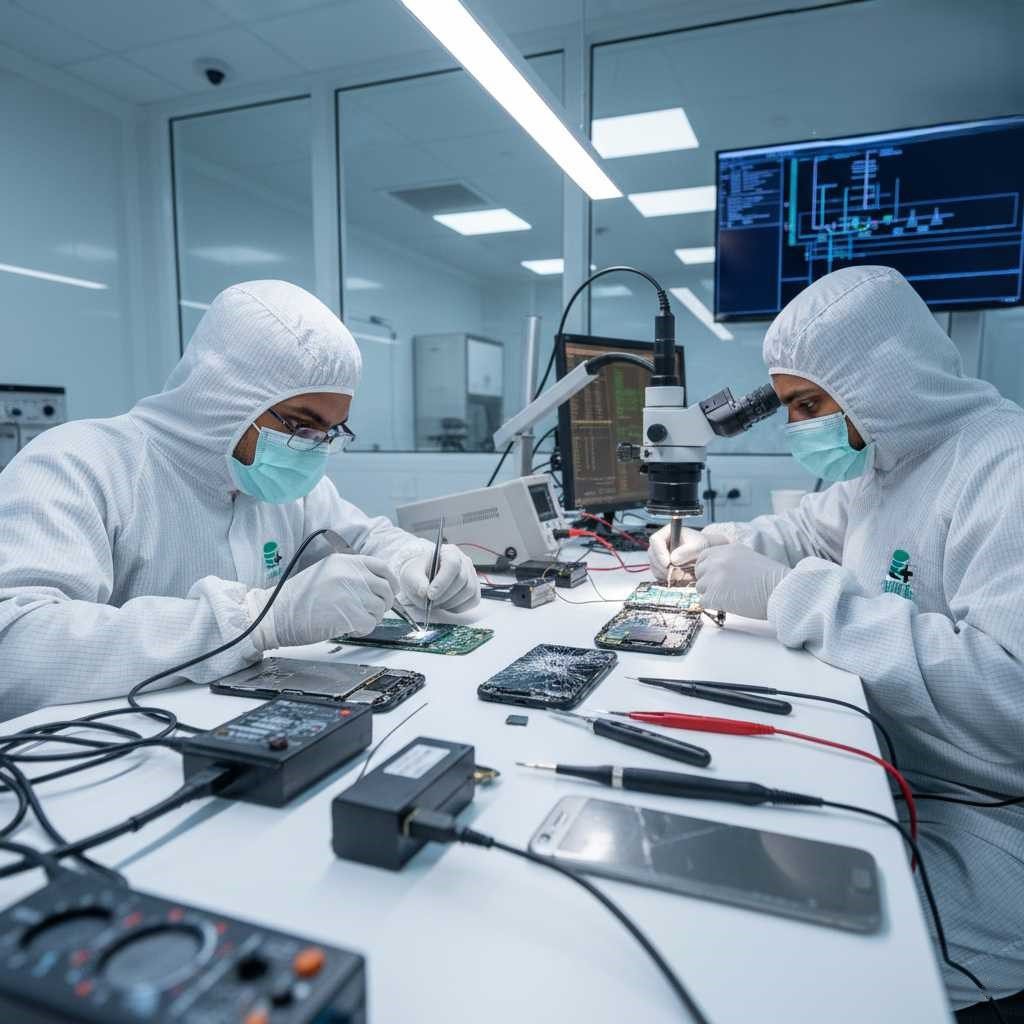

⚠️ When Standard Recovery Fails

Most forensic tools rely on a functioning device or active OS. However, devices often arrive in non-working conditions due to:

🔧 Hardware Failures:

🔋 Dead motherboard
🔌 Broken or disconnected internal circuits
⚡ Power IC or charging port failure
🔥 Short circuits

💧 Liquid & Fire Damage:

🌊 Severe corrosion
🧪 Oxidation of internal contacts
🔥 Burnt boards or components

🧠 Software Issues:

💿 Corrupt firmware or ROMs
🔁 Bootloop
🔐 Locked bootloaders
🔒 Encryption and security lockouts

In these scenarios, logical extraction methods (like USB-based access) are ineffective. This is where hardware-based extraction becomes essential.

🛠️ Core Forensic Techniques: JTAG, ISP & Chip-Off Explained

✅ JTAG – Board-Level Memory Access

📱 Use Case: Phones that are not booting or are semi-functional

JTAG (Joint Test Action Group) allows access to the internal memory by connecting directly to test points on the device’s motherboard. This technique enables:
📥 Acquisition of full memory dumps
🕵️‍♂️ Extraction of deleted or hidden data
🚫 Recovery even if the OS is unresponsive

🧷 JTAG is non-invasive and does not require removing the memory chip, making it ideal for first-level hardware recovery.

✅ ISP – In-System Programming (Non-Destructive)

🔧 Use Case: Devices with a functional memory chip, but a damaged mainboard or processor

With ISP, we bypass the processor and access memory directly via data lines. It enables:
🔓 Reading encrypted or locked data
💾 Dumping entire partitions
🔐 Recovery from PIN-locked or password-protected devices

🧰 Since ISP doesn’t require desoldering, it’s ideal for encryption-sensitive cases.

✅ Chip-Off – Direct NAND Access

💥 Use Case: Complete physical failure of the device or mainboard

Chip-Off involves removing the NAND memory chip from the PCB, cleaning it, and reading it using specialized forensic hardware. Best suited for:
💧 Water/fire-damaged devices
🧨 Devices with board-level destruction
📁 Full physical acquisition from memory

🧠 Extracted data is reconstructed into readable forensic images suitable for investigation or legal use.

Understanding which method is right for your damaged Android: The three main hardware extraction methods — JTAG, ISP, and Chip-Off — are not interchangeable. JTAG uses the device’s test access port to communicate with the processor and extract data without disassembling the memory; it’s the least invasive. ISP (In-System Programming) directly accesses the eMMC memory via test pads on the PCB; it’s faster than JTAG for UFS storage. Chip-Off physically removes the NAND or eMMC chip from the board and reads it independently; it’s the last resort when the PCB is completely destroyed. Data Engineers selects the appropriate method based on device condition assessment.

🧪 Beyond Recovery: What We Offer to Forensic Teams

Data Engineers is not just a recovery provider — we’re a comprehensive forensic technology partner. Here’s how we support India’s forensic and investigative ecosystem:

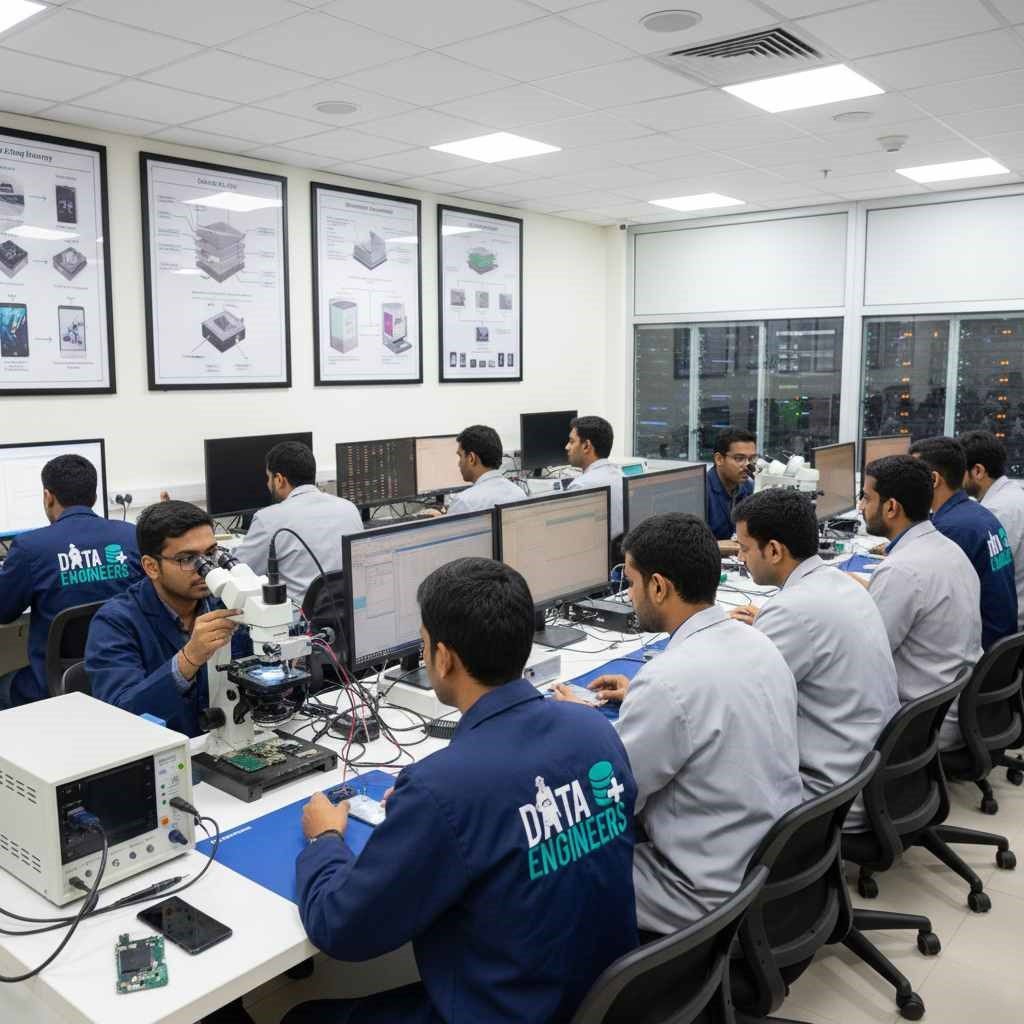

🎓 Certified Forensic Training Programs

We provide structured, certified mobile forensics training for:

👨‍🔬 Forensic Science Lab Officers
👮 Cybercrime Investigators
🏢 State & Central LEA Teams
🎖️ Military Intelligence Operatives
🔬 Digital Evidence Analysts

🛠️ Training Highlights:

🧴 Hands-on practice with real damaged devices
🔧 Hardware soldering, micro-jumpering, BGA rework
💻 Logical & physical extraction methods
🔒 Working with locked or encrypted Android systems
💾 Memory chip analysis and reconstruction
📜 Legal compliance & chain-of-custody procedures

🪪 Each participant receives:

🎓 Certification of Completion
🔧 Access to post-training support
📚 Updated materials & case studies

📍 Training options: On-site, off-site, or at our New Delhi lab.

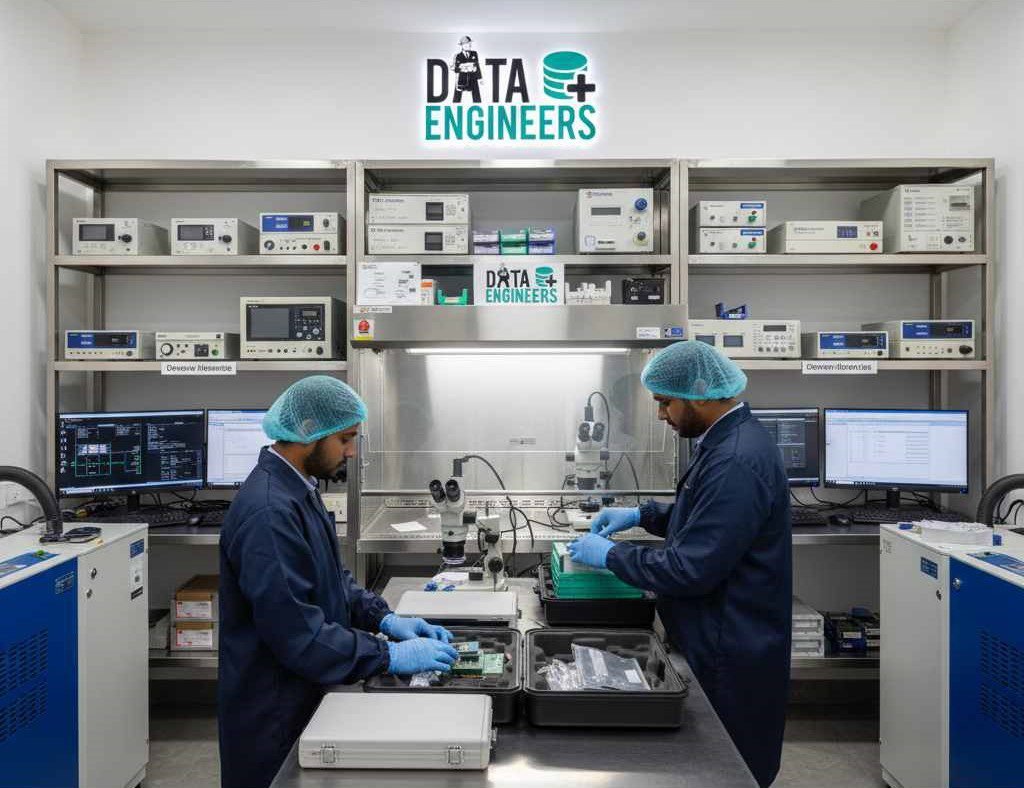

🧰 Tools, Equipment & Infrastructure Supply

We provide forensic-grade hardware kits tailored to your needs:

🔍 Memory readers & analyzers
🛠️ Soldering & reballing stations
🔬 Optical microscopes for micro soldering
🧤 Lab safety & cleanroom equipment
🧰 Custom setups for secure environments

✔️ All tools are selected for durability, compatibility, and professional forensic use.

🔄 AMC – Annual Maintenance Contracts

Ensure continuous operation with Annual Maintenance Contracts (AMCs) for agencies and FSLs. Services include:

🔧 Regular equipment servicing
💿 Software/firmware updates
🆘 Emergency support & part replacement
🧾 Performance audits
📅 Quarterly team upskilling sessions

📈 With AMC, your operations remain agile, optimized, and compliant.

📁 Real-World Use Case: National-Level Financial Fraud

🛑 A non-functional Android device, key to a financial fraud investigation, was submitted to a state FSL. It had suffered extensive water damage and wouldn’t turn on.

Using ISP and Chip-Off, our team:

1️⃣ Extracted a full memory dump
2️⃣ Decrypted the storage
3️⃣ Recovered key WhatsApp chats, documents, call logs
4️⃣ Delivered an official forensic report

⚖️ This evidence became court-admissible and played a vital role in charging the suspects.

📞 Get in Touch: Trusted Mobile Forensics Partner

Data Engineers – Forensic Recovery Experts
📍 704, Meghdoot Building-94, Nehru Place, New Delhi, India

📞 Phone Numbers:
📱 +91-11-26426316
📱 +91-9910132719
📱 +91-9818567981

📧 Email:
✉️ support@dataengineers.in

🛡️ Confidentiality Assured

All services are conducted under:

🔒 Strict legal compliance
📜 Non-disclosure agreements
🔗 Chain-of-custody protocols

We ensure that your evidence remains secure and legally admissible at all stages.
